Tagless Label Printing Machines LP4

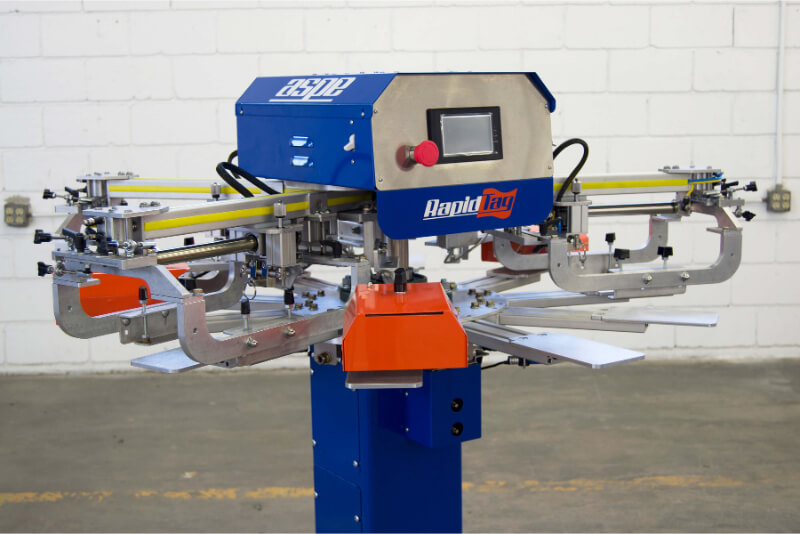

Rapid Tag Four Colors Small Automatic Tagless Label Printing Machines LP4

Allowing printing for four-color images, the LP4 is our most powerful model. It’s perfect for sleeve prints, and any design that needs a little extra.
Each print head has its own flash cure system to stop accidental wet ink over wet ink printing.

Whether size labels or with our special attachments for face masks, socks, or swim caps, there are many possibilities. Our 4 color hat printing machine is also based on this 4 color screen printing machine.

SPECIFICATION

Label screen printing machine RapidTag

Height: 55“ | 140cm

Diameter: 45″ | 115cm

10x Stations

4x Print Heads

4x High-Density Flash Cure Units

Print/Flash/Print/Flash/Print/Flash/Print/Flash

Standard Pallet Size 4″ Wide x 8 ” Long | 10 cm x 20 cm

Max Image Print Area 6″ Wide x 6″ Long | 15 cm x 15 cm

Standard Frame Size 9″ x 14″ | 22 cm x 35.5 cm

Flash Cure Size 5″ x 5″ | 12.7 cm x 12.7 cm

KEY FEATURES

  • Parts Counter
  • Stroke adjustment
  • Micro Registration
  • Index Speed Set up
  • Stepper Motor Indexer
  • Adjustable stroke length
  • Squeegee Angle Adjustment
  • Parts Sensor (no product no print)
  • Adjustable Stroke and flood speed
  • Print Accuracy of .001″ | 0.02mm
  • High-Density Flash Cure Units
  • Pneumatic Screen Locks
  • Color Touch Screen
  • Curing Time Set up
  • Hoodie arms
  • Dwell set up

Add-ons

Pallet Options: Socks, Sleeve, Face-Mask, Swimming Caps, Gloves Printing, Can Cooler.

Laser guidance to assist positioning

Foot Pedal

Unloader


This machine can be adapted for various applications

Specify which pallet size you need

We Give!

FLASH CURES

Every print head comes with its own flash cure so you do not have to print wet on wet. This allows the operators to continue production without having to worry about build-up on the next screen.

STROKE ADJUSTMENT

Adjust your stroke length according to the size of your image. This also helps speed up production.

SQUEEGEE ANGLE

Adjust your squeegee angle and control your squeegee flexing accordingly to print on all different types of substrates with a variety of different inks.

MOTION SENSOR

Also known as the “parts present sensor”, it detects your product and tells the machine to print on the given pallet. If there is no product present on the pallet then the RapidTag will NOT print.

PNEUMATIC SCREEN LOCK

The automatic screen airlocks allow the user to quickly fasten.

HOODIE ARMS

The hoodie arms definitely come in handy when you have a hoodie job to do. Easily place the hood of the hoodie in the cavity in order to not disturb the rest of the machine during production.

Need more info?

Contact

(+1) 951.296.2595


REQUIREMENTS

AIR

Clean Dry Air
90-110 PSI
1.8CFM
6-8 Bars
45L/min

POWER

220 Volt
Single Phase
30 Amps


Our Product Video

RapidTag Máquina de Serigrafía para Etiquetas (2000 piezas por Hora)

SHIPPING INFORMATION

Domestic Class 175

550 lbs | 250 kg shipping weight

Crate size 71″ x 71″ x 62.5″ (61″on request) | 180 x 180 x 159 cm (155cm on request)

International Shipments are all heat-treated/ISPM 15 certified
