Four Colors Large Automatic Screen Printing Machines LP4XL
The RapidTag LP4XL is a large automatic screen printing machine designed for commercial-scale production. It comes with a four-color printing head, an intuitive user interface, and higher throughput, so it can screen print up to four colors at once.
Heavy-Duty Tagless Label Printer for Apparel LP4XL
So you're a screen printer and want to upgrade your equipment, but have a tight budget. We've got you covered. The LP4XL is the most affordable automatic screen printing machine on the market, perfect for any screen printer who wants to get into automatic screen printing without breaking the bank.
The RapidTag LP4XL is a large automatic screen printing machine designed for commercial-scale production. It features an intuitive user interface, which speeds up the setup process. The LP4XL also comes with a four-color printing head so it can screen print up to four colors at once.
This machine is much simpler to use and offers higher throughput: up to 800 shirts per hour. Actual output depends on the operator, garment, ink, artwork, curing requirements and production setup, but the point stands: it can do more prints in a shorter amount of time, so it can be used for things like print runs for apparel companies.
The XL platform is available in three print-and-cure configurations: 12″ x 12″, 14″ x 16″, or 16″ x 18″. Choose the configuration that fits your artwork, garment sizes and production requirements when you order.
Is the machine easy to use?
The screen printing machine is easy to set up for each print job and is easy to operate while also having precise registration to each print job. The machine itself is very easy to use.

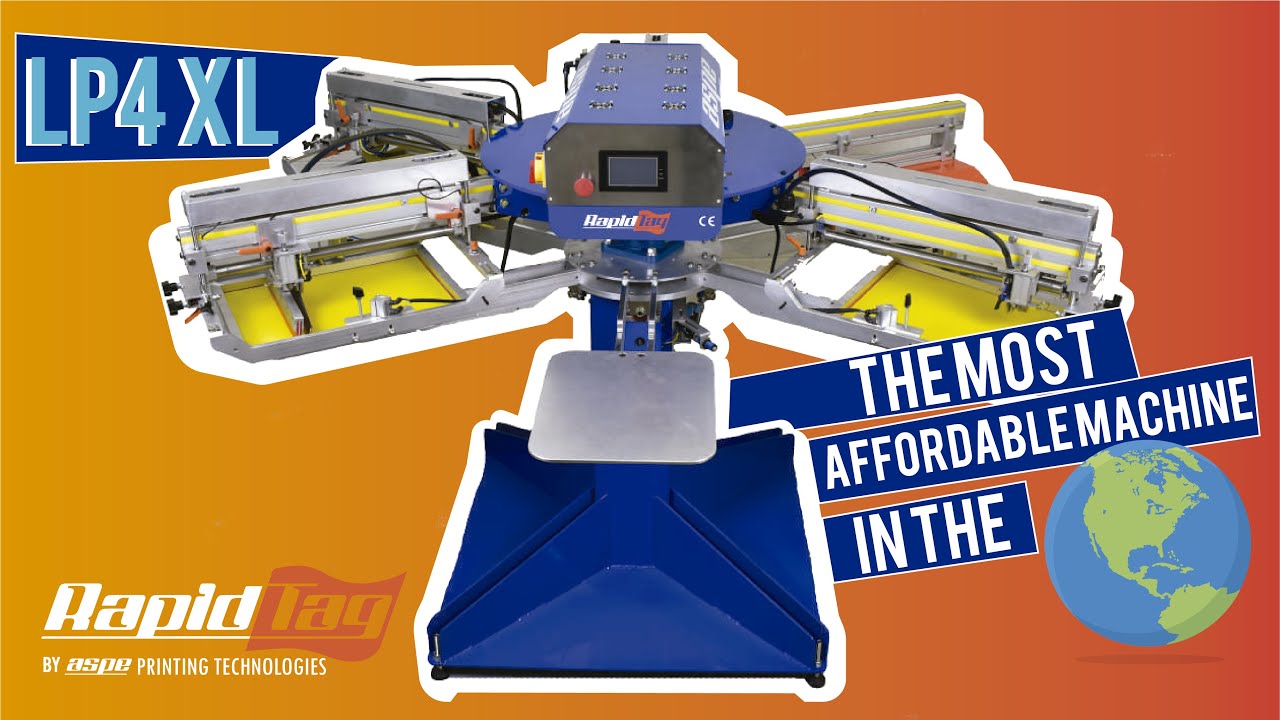

The LP4XL in action.
LP4XL key features.
Parts Counter
Micro Registration
Hoodie Arms
Index Speed Set-up
Stroke Adjustment
Servo Indexer
Adjustable Stroke Length
Squeegee Angle Adjustment
Parts Sensor (no product no print)
Adjustable Stroke & Flood Speed
Print Accuracy of .001″ | 0.02 mm
High-Density Flash Cure Units
Pneumatic Screen Locks
Color Touch Screen
Curing Time Set-up
Dwell Set-up
Specialized features designed for efficient tagless printing.
Flash Cures
Every print head comes with its own flash cure so you do not have to print wet on wet. This allows the operators to continue production without having to worry about build-up on the next screen.
Stroke Adjustment
Adjust your stroke length according to the size of your image. This also helps speed up production.
Squeegee Angle
Adjust your squeegee angle and control your squeegee flexing accordingly to print on all different types of substrates with a variety of different inks.
Motion Sensor
Also known as the "parts present sensor", it detects your product and tells the machine to print on the given pallet. If there is no product present on the pallet then the RapidTag will NOT print.
Pneumatic Screen Lock
The automatic screen airlocks allow the user to quickly and securely fasten the screens in place.
Hoodie Arms
The hoodie arms definitely come in handy when you have a hoodie job to do. Easily place the hood of the hoodie in the cavity in order to not disturb the rest of the machine during production.
LP4XL specification.
Specification
Height: 55″ | 140 cm
Diameter: 90″ | 229 cm
6x Stations
4x Print Heads
1x High-Density Flash Cure Unit
Sequence: Print / Flash / Print / Print / Print
Standard Pallet Size: 13.25″ wide x 16″ long | 33.6 x 40.6 cm
Available Print + Cure Areas: 12″ x 12″, 14″ x 16″, or 16″ x 18″ (choose your configuration when ordering)
Standard Frame Size: 16″ x 20″ | 40.6 cm x 50.8 cm
Throughput: up to 800 shirts per hour (depends on garment, artwork and setup)
Print Accuracy: .001″ | 0.02 mm
Add-ons
Pallet options: Socks, Sleeve, Face-Mask, Swimming Caps, Gloves Printer, Can Cooler. Laser guidance to assist positioning. Foot Pedal. Additional Roll-Under Flash Cure. This machine can be adapted for various applications, just specify which pallet size you need. We give a two-year warranty.
Requirements
Air: Clean dry air, 90-110 PSI, 6-8 Bar, approximately 4 CFM. A 1/4 NPT air adapter is included.
Power: 220 Volt, single phase, 50 amps.
Shipping Information
Domestic Class 175. 350 lbs | 159 kg shipping weight. Crate size 72″ x 72″ x 60″ (61″ on request). International shipments are all heat-treated / ISPM 15 certified.
