Tagless Label Printing Machines LP2



Two Color Tagless Label Printing Machines LP2



Our most popular model, the LP2 allows you to print two colors designs without being too bulky or costly. As with all multi-head machines, you are able to offer your customers specialty printing applications such as high density or under-basing for darker garments. Remember that each print head gets its own flash cure system.

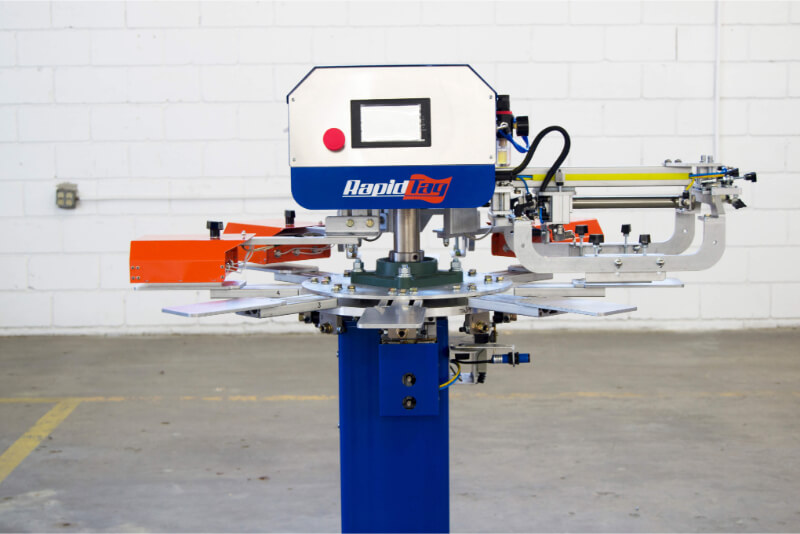

The LP2 Rapid Tag is the extension of our 1 color screen printing machine to print tagless size labels on textile garments. Now with the LP2 Rapid Tag, we have the possibility to print 2 colors. Enormously fast and again with different printing plate extensions. Also, our 2 color hat and cap printer is based on this LP2 screen printing machine.

SPECIFICATION

Label Screen Printing Machine Rapidtag LP2

Height: 55“ | 140cm

Diameter: 38″ | 97cm

8x Stations

2x Print Heads

3x High-Density Flash Cure Units

Print/Flash/Print/Flash/Flash

Standard Pallet Size 4″ Wide x 8 ” Long | 10 cm x 20 cm

Max Image Print Area 6″ Wide x 6″ Long | 15 cm x 15 cm

Standard Frame Size 9″ x 14″ | 22.8 cm x 35.5 cm

Flash cure size: 5” x 5“ | 12.7cm x 12.7cm

KEY FEATURES

  • Parts Counter
  • Stroke adjustment
  • Micro Registration
  • Index Speed Set up
  • Stepper Motor Indexer
  • Adjustable stroke length
  • Squeegee Angle Adjustment
  • Parts Sensor (no product no print)
  • Adjustable Stroke and flood speed
  • Print Accuracy of .001″ | 0.02mm
  • High-Density Flash Cure Units
  • Pneumatic Screen Locks
  • Color Touch Screen
  • Curing Time Set up
  • Hoodie arms
  • Dwell set up

Add-ons

Pallet Options: Socks, Sleeve, Face-Mask, Swimming Caps, Gloves Printer, Can Cooler.

Laser guidance to assist positioning

Foot Pedal

Unloader


This machine can be adapted for various applications

Specify which pallet size you need

We give!

FLASH CURES

Every print head comes with its own flash cure so you do not have to print wet on wet. This allows the operators to continue production without having to worry about build-up on the next screen.

STROKE ADJUSTMENT

Adjust your stroke length according to the size of your image. This also helps speed up production.

SQUEEGEE ANGLE

Adjust your squeegee angle and control your squeegee flexing accordingly to print on all different types of substrates with a variety of different inks.

MOTION SENSOR

Also known as the “parts present sensor”, it detects your product and tells the machine to print on the given pallet. If there is no product present on the pallet then the RapidTag will NOT print.

PNEUMATIC SCREEN LOCK

The automatic screen airlocks allow the user to quickly fasten.

HOODIE ARMS

The hoodie arms definitely come in handy when you have a hoodie job to do. Easily place the hood of the hoodie in the cavity in order to not disturb the rest of the machine during production.





Need more info?

Contact

(+1) 951.296.2595

REQUIREMENTS

AIR

Clean Dry Air
90-110 PSI
1.1 CFM
6-8 Bar
30L/min

POWER

220 Volt
Single Phase
25 Amps


Our Product Video

The RapidTag LP2 By Aspe

SHIPPING INFORMATION

Domestic Class 175

350 lbs | 159 kg shipping weight

Crate size 49″ x 49″ x 62″ (61″ on request) | 125 cm x 125 cm x 158 cm (155cm on request)

International Shipments are all heat-treated/ISPM 15 certified
