Tagless Label Printing Machines LP1

RapidTag One Color Small Automatic Tagless Label Printing Machines

Originally designed for printing tagless garment labels, the LP1 (as well as the rest of our products) has adapted itself to printing promotional products and other odd-shaped products & components. The LP1 is our most affordable model and still one of the best sellers.

The key to screen printing tagless labels is not only that the washability is more durable than the classic pad printing, but also the speed. And with more than 1500 revolutions per hour, you should be faster than any pad printing process. Furthermore, it is possible to expand the pallets we now have several pallets that you can use to expand your number of printing objects. The RapidTag LP1 is very fast and the colours can be fixed directly on the machine. If you have any questions, we will be happy to help you.

SPECIFICATION

Height: 55“ | 140cm

Diameter: 36″ | 82cm

5x Stations

1x Print Heads

2x High-Density Flash Cure Units

Print/Flash/Flash

Standard Pallet Size 4″ Wide x 8 ” Long | 10 cm x 20 cm

Max Image Print Area 6″ Wide x 6″ Long | 15 cm x 15 cm

Standard Frame Size 9“ x20“ | 22.8 cm x 50.8 cm

Flash cure size: 5” x 5“ | 12.7cm x 12.7cm

KEY FEATURES

  • Parts Counter
  • Stroke adjustment
  • Index Speed Set up
  • Stepper Motor Indexer
  • Adjustable stroke length
  • Squeegee Angle Adjustment
  • Parts Sensor (no product no print)
  • Adjustable Stroke and flood speed
  • High-Density Flash Cure Units
  • Pneumatic Screen Locks
  • Color Touch Screen
  • Curing Time Set up
  • Hoodie arms
  • Dwell set up

Add-ons

Pallet Options: Socks, Sleeve, Face-Mask, Swimming Caps, Gloves Printing, Can Cooler.

Laser guidance to assist positioning

Foot Pedal

Unloader


This machine can be adapted for various applications

Indicate Pallet size, Standard, or Max. print size

We give!

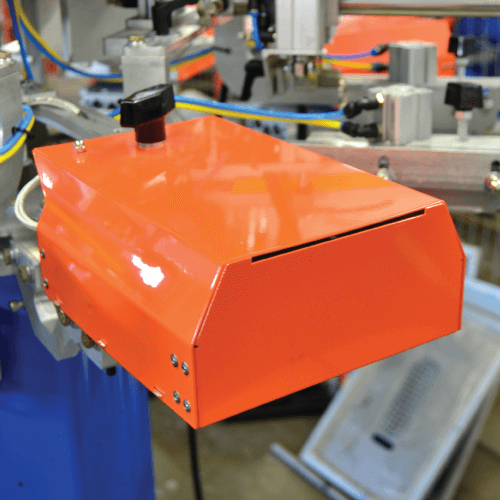

FLASH CURES

Every print head comes with its own flash cure so you do not have to print wet on wet. This allows the operators to continue production without having to worry about build-up on the next screen.

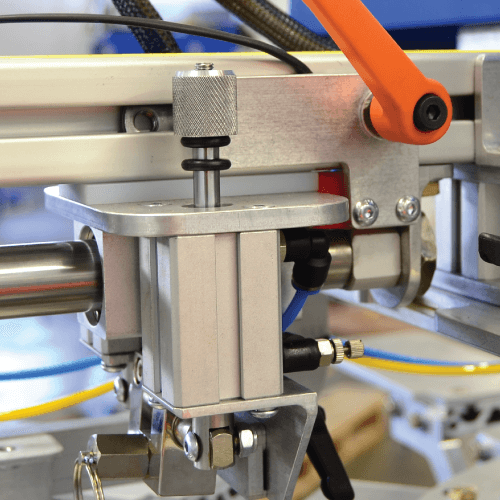

STROKE ADJUSTMENT

Adjust your stroke length according to the size of your image. This also helps speed up production.

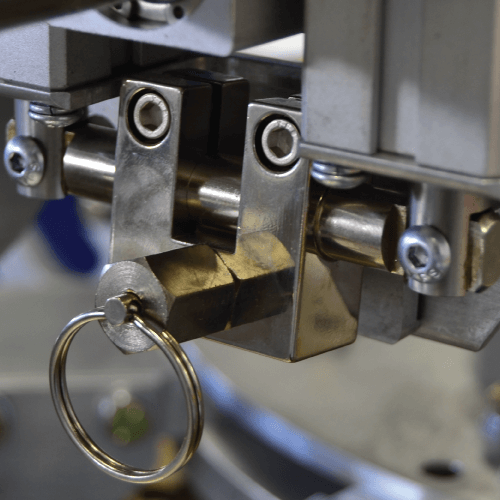

SQUEEGEE ANGLE

Adjust your squeegee angle and control your squeegee flexing accordingly to print on all different types of substrates with a variety of different inks.

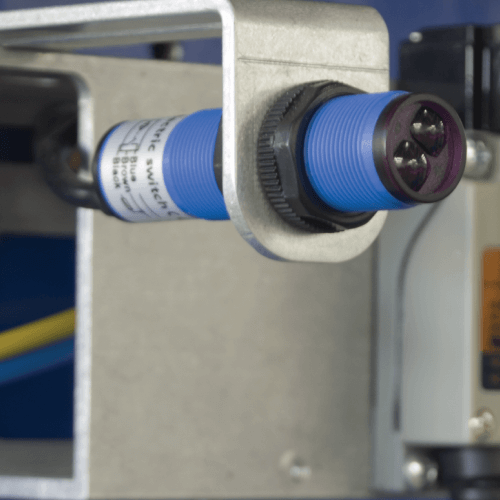

MOTION SENSOR

Also known as the “parts present sensor”, it detects your product and tells the machine to print on the given pallet. If there is no product present on the pallet then the RapidTag will NOT print.

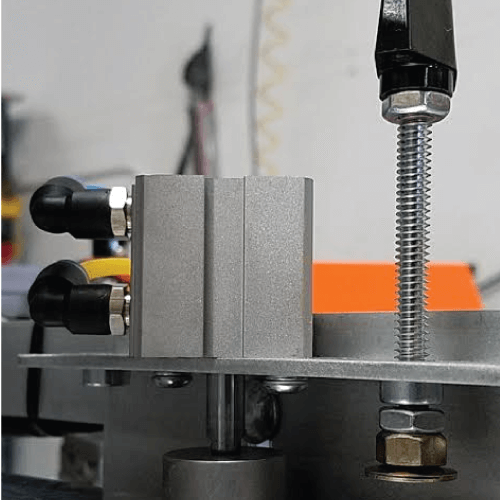

PNEUMATIC SCREEN LOCK

The automatic screen airlocks allow the user to quickly fasten.

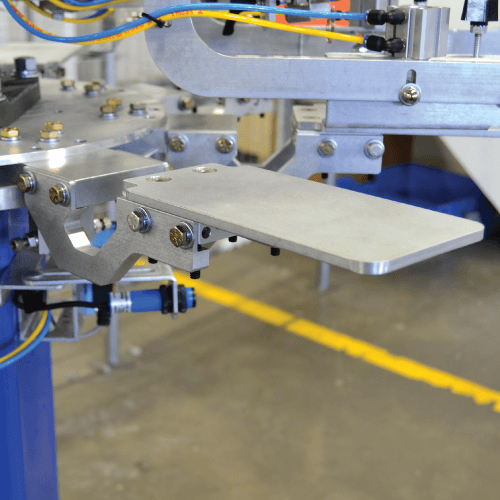

HOODIE ARMS

The hoodie arms definitely come in handy when you have a hoodie job to do. Easily place the hood of the hoodie in the cavity in order to not disturb the rest of the machine during production.

Need more info?

Contact

(+1) 951.296.2595


REQUIREMENTS

AIR

Clean Dry Air
90-110 PSI
0.6 CFM
6-8 Bar
30L/min

POWER

220 Volt
Single Phase
15 Amps

110 Volt
Single Phase
25 Amps


Our Product Video

Como imprimir etiquetas en playeras con la RapidTag LP1 - ASPE's RapidTag
Watch this video on YouTube.

SHIPPING INFORMATION

Domestic Class 175

280 lbs | 127 kg shipping weight

Crate size 43″ x 43″ x 61″ | 109 cm x 109 cm x 155 cm

International Shipments are all heat-treated/ISPM 15 certified
